Stainless Steel Tube & Tube Fittings

Stainless Steel Welded Tube

Legend	Definition
AW	As Welded
AWP	As Welded, Polished
AWA	As Welded, Annealed
AWAP	As Welded, Annealed, Polished
CW	Cold Worked
CWP	Cold Worked, Polished

AW & AWP are manufactured to ASTM A554, with dimensions to ASTM A269: Tubes of this quality are for use in decorative applications.

Polished Tube (all supplied in plastic sleeves)

Our standard polish is:

Round tube 320 grit

Square tube 180 grit

Round Tube also available in Mirror (600 grit)

Available in T316 only

CW & CWP Food Grade are manufactured to AS1528

Tubes of this quality are suitable for use in the food industry.

Available in grades T304 & T316

Large Diameters

Tube over 4″ (101.6mm) diameter is supplied to DIN specification.

Standard stock length for all stainless steel tubes is 6m. Other lengths may be available on request.

Stainless Steel Round Welded Tube (T304) ASTM A554

6 metre lengths

Size, OD		Wall Thickness		Weight	T304
mm	inch	mm	guage	kg/mtr	AW	AWP	AWA	AWAP
6.35	1/4	0.70	22	0.10			50007910
7.94	5/16	0.90	20	0.16			50007913
7.94	5/16	1.20	18	0.20			50007915
9.53	3/8	0.70	22	0.16		50007918	50011211
9.53	3/8	1.20	18	0.25		50007927
9.53	3/8	1.60	16	0.32		50007929
12.70	1/2	0.70	22	0.21			50007932
12.70	1/2	0.90	20	0.27		50007935
12.70	1/2	1.20	18	0.35		50007939	50007938
12.70	1/2	1.60	16	0.45		50007944		50007945
15.88	5/8	1.20	18	0.44		50007949
15.88	5/8	1.60	16	0.58		50007952	50007951
19.05	3/4	0.90	20	0.41		50007959
19.05	3/4	1.20	18	0.54	50008293	50007964	50011213
19.05	3/4	1.60	16	0.70		50007967
22.20	7/8	1.20	18	0.64	50007972	50007973
22.20	7/8	1.60	16	0.83	50008301	50007980
25.40	1	1.20	18	0.73	50007988	50007989	50007991	50007992
25.40	1	1.60	16	0.96	50011052	50007994		50007997
31.75	1 1/4	1.20	18	0.92	50008295	50008012	50008016
31.75	1 1/4	1.60	16	1.22		50008025		50008026
38.10	1 1/2	1.20	18	1.12		50008036	50008039	50008040
38.10	1 1/2	1.60	16	1.47		50008041	50008045	50008046
44.45	1 3/4	1.60	16	1.73		50008056
50.80	2	1.20	18	1.50		50008060		50008296
50.80	2	1.60	16	1.99		50008064	50008068	50008069
63.50	2 1/2	1.60	16	2.50		50008089
76.20	3	1.60	16	3.01	50008105	50008106
88.90	3 1/2	1.60	16	3.82	50008118
101.60	4	1.60	16	4.03	50008121	50008122
101.60	4	2.03	14	5.02	50008134	50008135
127.00	5	1.60	16	5.06		50008142
152.40	6	1.60	16	6.08	50011215	50008148
203.20	6	2.03	14	10.15	50008153
254.00	10	2.03	14	12.71

Stainless Steel Round Welded Tube (T316) ASTM A554

6 metre lengths

Size, OD		Wall Thickness		Weight	T316
mm	inch	mm	guage	kg/mtr	AW	AWP	AWA	AWAP
9.53	3/8	1.20	18	0.25		50007925
9.53	3/8	1.60	16	0.32		50007930
12.70	1/2	1.20	18	0.35		50007942		50007943
12.70	1/2	1.60	16	0.45		50007946		50007948
15.88	5/8	1.20	18	0.44		50007950
15.88	5/8	1.60	16	0.58		50007954
19.05	3/4	1.20	18	0.54		50007966
19.05	3/4	1.60	16	0.70		50007969		50007971
22.20	7/8	1.20	18	0.64		50007976
22.20	7/8	1.60	16	0.83		50007984
25.40	1	1.20	18	0.73		50007993
25.40	1	1.60	16	0.96		50008000		50008003
31.75	1 1/4	1.20	18	0.92
31.75	1 1/4	1.60	16	1.22		50008027		50008032
38.10	1 1/2	1.60	16	1.47		50008048		50008054
50.80	2	1.60	16	1.99		50008072		50008080
63.50	2 1/2	1.60	16	2.50		50008094		50008100
76.20	3	1.60	16	3.01		50008111		50008116
88.90	3 1/2	1.60	16	3.52
88.90	3 1/2	2.03	14	4.45
101.60	4	1.60	16	4.03		50008129
101.60	4	2.03	14	5.10		50008137
127.00	5	1.60	16	5.06	50008138	50008143
152.40	6	1.60	16	6.08		50008147
203.20	8	2.03	14	10.30
254.00	10	2.03	14	12.90	50008158

Single and Double Slotted Handrail Tube (T316)

Tube	Size, OD		Wall Thickness mm	Slot Size	T316
Tube	mm	inch	Wall Thickness mm	Slot Size	T316
Single Slot	50.8	2	1.5	15 x 15	50024705
Single Slot	63.5	2	1.5	20 x 20	50024706
Double Slot	50.8	2	1.5	15 x 15	50024708

Single Slot

Double Slot

Stainless Steel Round Welded Tube Food Grade to AS1528

6 metre lengths

Size, OD		Wall Thickness		Weight kg/mtr	T304		T316
mm	inch	mm	guage	Weight kg/mtr	CW	CWP	CW	CWP
12.70	1/2	1.60	16	0.45		50106919		50106923
19.05	3/4	1.60	16	0.70		50106920		50106924
25.40	1	1.60	16	0.96		50106921		50106925
31.75	1 1/4	1.60	16	1.22		50024511		50008029
38.10	1 1/2	1.60	16	1.47		50008044		50008052
50.80	2	1.60	16	1.99		50008067		50008077
63.50	2 1/2	1.60	16	2.50		50008092		50008098
76.20	3	1.60	16	3.01		50008108		50008113
101.60	4	1.60	16	4.03		50008123		50008131
152.40	6	1.60	16	6.08		50106922		50106926

Annealed tube available ex mil.

Stainless Steel Round Welded Tube 600 Grit ASTM A554 (T316 only)

6 metre lengths

Size, OD		Wall Thickness		Weight kg/mtr	T304
mm	inch	mm	guage	Weight kg/mtr	T304
12.70	1/2	1.60	16	0.45	50106928
15.88	5/8	1.60	16	0.58	50007953
19.05	3/4	1.60	16	0.70	50100186
25.40	1	1.60	16	0.96	50008086
31.75	1 1/4	1.60	16	1.22	50008087
38.10	1 1/2	1.60	16	1.47	50008051
50.80	2	1.60	16	1.99	50008075
63.50	2 1/2	1.60	16	2.50	50008097
76.20	3	1.60	16	3.01	50008110
101.60	4	1.60	16	4.03	50106929

Refer to your local Sales Office for availability of current stock and other sizes which are not listed.
All tubes supplied in protective plastic sleeves.

Stainless Steel Spiral Welded Tube ASTM A778

6 metre lengths

Size, OD	Wall Thickness	Weight kg/mtr	T304	T316
mm	mm	Weight kg/mtr	T304	T316
127.00	1.60	5.1	50008141
152.40	1.60	6.1	50008149	50008312
152.40	2.00	7.6		50008151
203.20	2.00	10.2	50033064
254.00	2.00	12.7	50008159	50008150
304.80	2.00	15.3	50033065

Limited range shown above, for full range, contact your local Sales Office.
Full range available from 76mm to 1528mm in diameter and wall thickness from 1.6 to 5mm.

Stainless Steel Round Seamless Tube ASTM A269

6 metre lengths

Size, OD		Wall Thickness		Weight kg/mtr	T316
mm	inch	mm	guage	Weight kg/mtr	T316
4.76	3/16	0.90	20	0.09	50008160
6.35	1/4	0.90	20	0.12	50008163
6.35	1/4	1.60	16	0.19	50008165
9.53	3/8	0.90	20	0.20	50008172
9.53	3/8	1.60	16	0.32	50008175
12.70	1/2	0.90	20	0.27	50008176
12.70	1/2	1.20	18	0.35	50008177
12.70	1/2	1.60	16	0.45	50008178
15.88	5/8	1.20	18	0.44	50008181
19.05	3/4	1.20	18	0.54	50008183
19.05	3/4	1.60	16	0.70	50008184
25.40	1	1.60	16	0.96	50008186

Refer to your local Sales Office for availability of current stock and other sizes which are not listed.
Annealed tube available ex mil.

Stainless Steel Square Tube ASTM A554

6 metre lengths

Size mm	Wall Thickness mm	Weight kg/mtr	T304 Polished	T316 Polished
12.70 x 12.70	1.2	0.44	50008190
19.05 x 19.05	1.2	0.67	50008192
19.05 x 19.05	1.6	0.88	50008193	50008195
25.40 x 25.40	1.2	0.92	50008196
25.40 x 25.40	1.6	1.21	50008200	50008202
25.40 x 25.40	2.0	1.49	50008212
31.75 x 31.75	1.2	1.17	50008203
31.75 x 31.75	1.6	1.55	50008206	50008207
31.75 x 31.75	2.0	2.02	50011217
38.10 x 38.10	1.2	1.40	50008208
38.10 x 38.10	1.6	1.85	50008210	50008211
50.80 x 50.80	1.6	2.49	50008216	50008215
50.80 x 50.80	3.0	4.48	50008222	50011216
80.00 x 80.00	3.0	7.30	50008223	50099617
100.00 x 100.00	3.0	9.73	50008227	50011652
100.00 x 100.00	4.0	12.98	50094053
100.00 x 100.00	5.0	16.22	50007956

Tube Bends

Diameter		Wall Thickness		T304		T316
Diameter		Wall Thickness		90 deg UNPOL	90 deg POL	90 deg UNPOL	90 deg POL	45 deg POL	180 deg POL
mm	inch	mm	guage	90 deg UNPOL	90 deg POL	90 deg UNPOL	90 deg POL	45 deg POL	180 deg POL
12.70	1/2	1.6	16			50000428	50000428
19.05	3/4	1.6	16	50000431	50000432	50000434	50000435	50011230	50000436
25.40	1	1.6	16	50000440	50000441	50000442	50000443	50000438	50000445
31.75	1 1/4	1.6	16	50000446	50000447	50000449	50000450	50000439	50000244
38.10	1 1/2	1.6	16	50000455	50000456	50000457	50000458	50000454	50000461
50.80	2	1.6	16	50000466	50000467	50000468	50000469	50000465	50000471
63.50	2 1/2	1.6	16	50000473	50000474	50000476	50000476	50000478	50000480
76.20	3	1.6	16	50000481	50000482	50000483	50000484	50000488	50000486
101.60	4	1.6	16	50000492	50000493	50000494	50000495	50000490	50000497
127.00	5	1.6	16	50000501	50011378	50000502	50000503	50000500
152.40	6	1.6	16	50000507	50011221	50000508	50000509	50000506
152.40	6	2.03	14			50000510
203.20	8	2.03	14					50033753
254.00	10	2.03	14	50033073		50000514

1/2″ to 4″ Bends all with extended legs.
6, 8 & 10″ x 14#, 90 deg Bends are “PRESSED”


90° Bend		45° Bend		180° Bend

Tube Tees – Equal Leg

Diameter		Wall Thickness		T304		T316
Diameter		Wall Thickness		UNPOL	POL	UNPOL	POL
mm	inch	mm	guage	UNPOL	POL	UNPOL	POL
12.70	1/2	1.6	16				50000516
19.05	3/4	1.6	16		50000517		50000518
25.40	1	1.6	16		50000519		50000520
31.75	1 1/4	1.6	16		50000521		50000522
38.10	1 1/2	1.6	16		50000528		50000529
50.80	2	1.6	16		50000532		50000533
63.50	2 1/2	1.6	16		50000534		50000535
76.20	3	1.6	16		50000536		50000537
101.60	4	1.6	16		50000538		50000539
127.00	5	1.6	16			50000540
152.40	6	1.6	16	50000541	50000542	50000543	50000544

Refer to your local Sales Office for availability of current stock and other sizes which are not listed.

Equal Tee

Tube Reducers – All Made from T316 Material

Size

Wall Thickness

Concentric

Eccentric

gauge

1/2

1/4

1.6

50011222

3/4

1/2

1.6

50000546

1/2

1.6

50000548

50000581

3/4

1.6

50000549

1 1/4

1.6

50000550

50000583

1 1/2

3/4

1.6

50000551

1 1/2

1.6

50000552

50000584

1 1/2

1 1/4

1.6

50000553

50000585

1.6

50000554

50000586

1 1/4

1.6

50000555

1 1/2

1.6

50000556

50000587

2 1/2

1.6

50000557

2 1/2

1 1/2

1.6

50000558

50000588

2 1/2

1.6

50000559

50000589

1.6

50000560

1 1/2

1.6

50000561

1.6

50000563

50000591

2 1/2

1.6

50000564

50000592

1 1/2

1.6

50000566

50000593

1.6

50000565

50000594

2 1/2

1.6

50000569

50000595

1.6

50000567

50000596

1.6

50000568

2 1/2

1.6

50000597

1.6

50000572

50000598

1.6

50000570

50000599

1.6

50000574

50011056

2 1/2

1.6

50000577

50000600

1.6

50000571

50000601

1.6

50000573

2.03

50000576

Reducers with extended legs available on special order.
Refer to your local Sales Office for availability of current stock and other sizes which are not listed.


	Concentric Reducers		Eccentric Reducers

Tube Clamps – All Grade T304

For Tube Size		Plain Clamp	Bossed Clamp
mm	inch	Plain Clamp	Bossed Clamp
12.70	1/2	50000734	50000748
19.05	3/4	50000735	50000749
25.40	1	50000736	50000750
31.75	1 1/4	50000737	50000751
38.10	1 1/2	50000738	50000752
50.80	2	50000739	50000753
63.50	2 1/2	50000740	50000754
76.20	3	50000741	50000755
101.60	4	50000742	50000756
127.00	5	50000743
152.40	6	50000744	50000757
203.20	8	50000745

Also available for pipe.
Other styles and sizes available on request.


	Plain Clamp		Bossed Clamp

Handrail Accessories

All Grade T316

Domed Tube Cap

Grade T316
12.7	19.05	25.4	31.75	38.1	50.8	63.5	76.2	101.6	152.4
	50095872	50095904	50095905	50095907	50095908	50095909	50095910	50095912

Solid End Caps

Grade T316
25.4	31.75	38.1	50.8	63.5	76.2
50112058	50065477	50065490	50065493	50065494	50065495

Base Plate and Cover

Grade T316
12.7	19.05	25.4	31.75	38.1	50.8	63.5	76.2
50037444	50000914	50000917	50000920	50000923	50000926	50095928	50095929

Note: Cover is Grade 316. Base Plate is 304, not intended for immersion in water.
Refer to your local Sales Office for availability of current stock and other sizes which are not listed.

Stainless Steel Adjustable Feet

Size	Description	Stock
32mm	Standard Leg – Circular Base with Holes	50000935
50mm	Standard Leg – Circular Base with Holes	50000936
65mm	Standard Leg – Circular Base with Holes	50000937
AWM
32mm	Machined Leg – Circular Base with Holes
50mm	Machined Leg – Circular Base with Holes
65mm	Machined Leg – Circular Base with Holes	50000934
AWM
32mm	Standard Leg – Plastic Capped Base
50mm	Standard Leg – Plastic Capped Base
AWM
65mm	Pinfoot Machined Leg	50000931
AWM
25/50	Standard Leg – Lugged Foot	50000933
AWM
25/50	Machined Leg – Lugged Foot
AWM
25mm	Plastic Insert for 25mm Square Tube	50000940
32mm	Plastic Insert for 32mm Square Tube	50000943
38mm	Plastic Insert for 38mm Square Tube	50000944
AWM
38mm	Plastic Insert for 38mm Round Tube

Refer to your local Sales Office for availability of current stock and other sizes which are not listed.

Circular Base

Pinfoot

Lugged Foot

Plastic Insert

Stainless Steel Table Flanges T304L

AS2129, Tables D and E

Size, ID		Table D			Table E
NB	inch	Tube	Pipe	Blind	Tube	Pipe	Blind
15	1/2				50000403	50109707
20	3/4		50000332		50000405	50107908
25	1	50000378	50000333		50000407	50107909
32	1 1/4				50000409	50107910
40	1 1/2	50000380	50000334		50000411	50107911
50	2	50000383	50107873		50000414	50000194
65	2 1/2	50000386			50000416	50000344
80	3	50000389	50000897		50000418	50000195
100	4	50000392	50000335		50000420	50000193
125	5	50000395			50000423	50107913
150	6	50000397	50000901		50000424	50000905
200	8	50000400			50000426	50000848
250	10			00000000	50107891	50107914	00000000
300	12				50107893	50107915

Stainless Steel Table Flanges T316L

AS2129, Tables D and E

Size, ID		Table D			Table E
NB	inch	Tube	Pipe	Blind	Tube	Pipe	Blind
15	1/2
20	3/4	50000377			50000406	50000337	50107926
25	1	50000379	50000328	50107876	50000408	50000338	50107927
32	1 1/4				50000410	50000339	50107928
40	1 1/2	50000382	50000886	50107877	50000412	50000341	50107929
50	2	50000385	50000887	50000353	50000415	50000891	50000356
65	2 1/2	50000388			50000417	50000849	50107930
80	3	50000391	50000899	50107878	50000419	50000900	50107931
100	4	50000394	50000888	50000354	50000421	50000911	50107855
125	5	50000396			50000421	50107920	5010392
150	6	50000399	50000889	50107879	50000425	50107921	50107933
200	8	50000401			50104904	50107922	50107934
250	10			00000000	50107905	50107923	50107935
300	12				50107906	50107924	50107936

Refer to your local Sales Office for availability of current stock and other sizes which are not listed.

Table Flange

BSM Accessories AS 1528- BS1864

Diameter, mm

Hex Nut T304

25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000669	50000670	50000671	50000672	50000673	50000674	50000675

Hex Nut

RJT Male Part T316

25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000662	50000663	50000664	50000665	50000666	50000667	50000668

Male Part + “O” Ring

RJT Liner T316

25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000677	50000679	50000680	50000681	50000682	50000685	50000686

Liner

EPDM “O” Rings for RJT Fittings

25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000707	50000708	50000709	50000710	50000711	50000712	50000713

RJT = Ring Joint Type

Diameter, mm

CIP Male Part (lip removed) T316

25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000805	50000806	50000807	50000808	50000809	50000810	00000000

CIP Male Part + “O” Ring

CIP Liner (flat faced) T316

25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000799	50000800	50000801	50000802	50000803	50000804	00000000

CIP Liner

EPDM Flat faced seal for CIP fitting

25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000811	50000812	50000813	50000814	50000815	50000816	00000000

Refer to your local Sales Office for availability of current stock and other sizes which are not listed.
CIP = Clean In Place

BSM Accessories AS 1528 – BS1864

Diameter, mm

Blank Nut T316

25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000714	50000715	50000716	50000717	50000718	50000719	50000720

Blank Nut

Blank Cap T316

25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000693	50000694	50000695	50000696	50000697	50000699	50000704

Blank Cap

Refer to your local Sales Office for availability of current stock and other sizes which are not listed.
BSM = British Standard Milk

Clamp Fittings

Diameter, mm

Hinged Clamp T304

12.7	19.05	25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000758	00000000	50000759	00000000	50000760	50000761	50000762	50000763	50000764

Hinged Clamp

Long Ferrule T316L

12.7	19.05	25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000765	50000766	50000767	50000768	50000769	50000770	50000771	50000773	50000774

Long Ferrule

End Cap T316

12.7	19.05	25.4	38.1	50.8	63.5	76.2	101.6	152.4
00000000	00000000	50000693	50000694	50000695	50000696	50000697	50000699	50000704

End Cap

EPDM Seal

12.7	19.05	25.4	38.1	50.8	63.5	76.2	101.6	152.4
50000782	50000783	50000784	50000785	50000786	50000787	50000788	50000789	50000790

Seal

Refer to your local Sales Office for availability of current stock and other sizes which are not listed.

Wine Fittings

Diameter, mm

Wine Nut Brass

25.4	38.1	50.8	63.5	76.2	101.6
00000000	50003476	50003474	00000000	50003475	50003477

Brass Wine Nut

Hose Tail T316

25.4	38.1	50.8	63.5	76.2	101.6
50000643	50000642	50000639	50024885	50000640	50000641

Hose Tail

Slip On Sleeve T304

25.4	38.1	50.8	63.5	76.2	101.6
00000000	5000676	00000000	00000000	50000678	00000000

Slip On Sleeve

B/W Machined Liner T304

25.4	38.1	50.8	63.5	76.2	101.6
00000000	00000000	50000959	00000000	50000649	50000960

B/W Liner

B/W Male Part (Wine Thread) T316

25.4	38.1	50.8	63.5	76.2	101.6
00000000	50000658	50000659	00000000	50000660	50000661

Male Part (Wine)

Lockable Sample cock

15 NB Butt Weld Fitting


50000950	00000000	00000000	00000000	00000000	00000000	00000000

B/W Sample Cock

15mm BSP Fitting


50000947	00000000	00000000	00000000	00000000	00000000	00000000

BSP Sample Cock

Refer to your local Sales Office for availability of current stock and other sizes which are not listed.

What is a stainless steel tube used for?

Stainless steel tubes high quality aesthetic appeal, mechanical properties and corrosion resistance makes it the ideal chose for a vast range of applications including, architectural, structural, interior and exterior uses. It’s hot and cold drawing characteristic lend itself to be fabricated for nearly any application.

The range of shapes include round tube sizes, square, rectangle tube and notched tube.

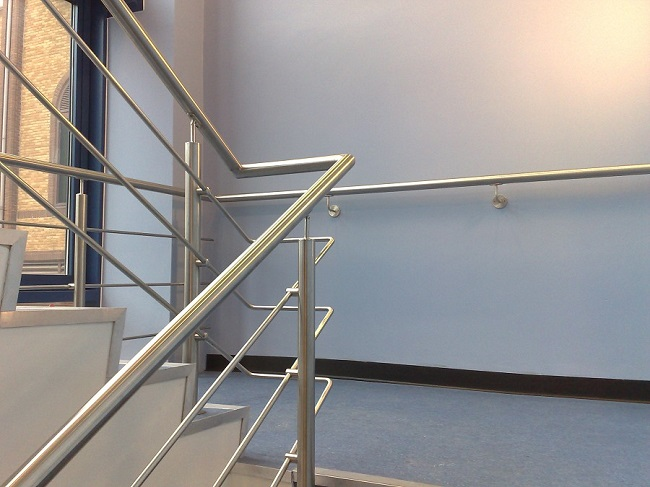

Hand rails is one of the most used applications of this product.

What’s the difference between a stainless steel pipe and tube?

The tube dimensions define the difference between tube and pipe, with wall thickness of pipe being greater than that of tube for the same outside diameter.

Also tube products are defined by their outside diameter measurement, while pipe is measured by the nominal inside diameter (ie Nominal Bore, NB) and the Schedule (wall thicknesses).

Which stainless steel tube is the best?

The two common alloys used for this product is either 304 or 316 grades. With 304 for interior applications and 316 for exterior and corrosive applications. 316 is also used for its hygienic sterile properties.
